Tuesday, 25 March 2025

Painting handles

I've designed and printed my own painting handles to help hold the miniatures that I recently started to paint.


When I used to do this, 30 years ago, I awkwardly held the bases, because I didn't know any other way. More recently I tend to fix things that I want to paint, on to bits of timber, often using sticky tack  (Blu Tack, White Tack, etc..)

Catching up with modern trends, I see most people using a comfortable looking handle with the miniature clamped or stuck in place.

There are a number on the market or available as 3D print files, of various shapes and sizes. Some with added features, like finger rests and clamps. I have bought a Citadel handle and that is great for miniatures with some shapes of bases but it is not really versatile.

There was no one handle that stood out as being exactly what I wanted. Of course, that led me to come up with my own.


I've now had the opportunity to use my own take on a handle and it was exactly what I hoped for. In use, I did not think about the handle and was easily able to move the model into the position I needed.


I've only used the stick on version, so far, but I've designed and printed 3 variants ready for different situations.

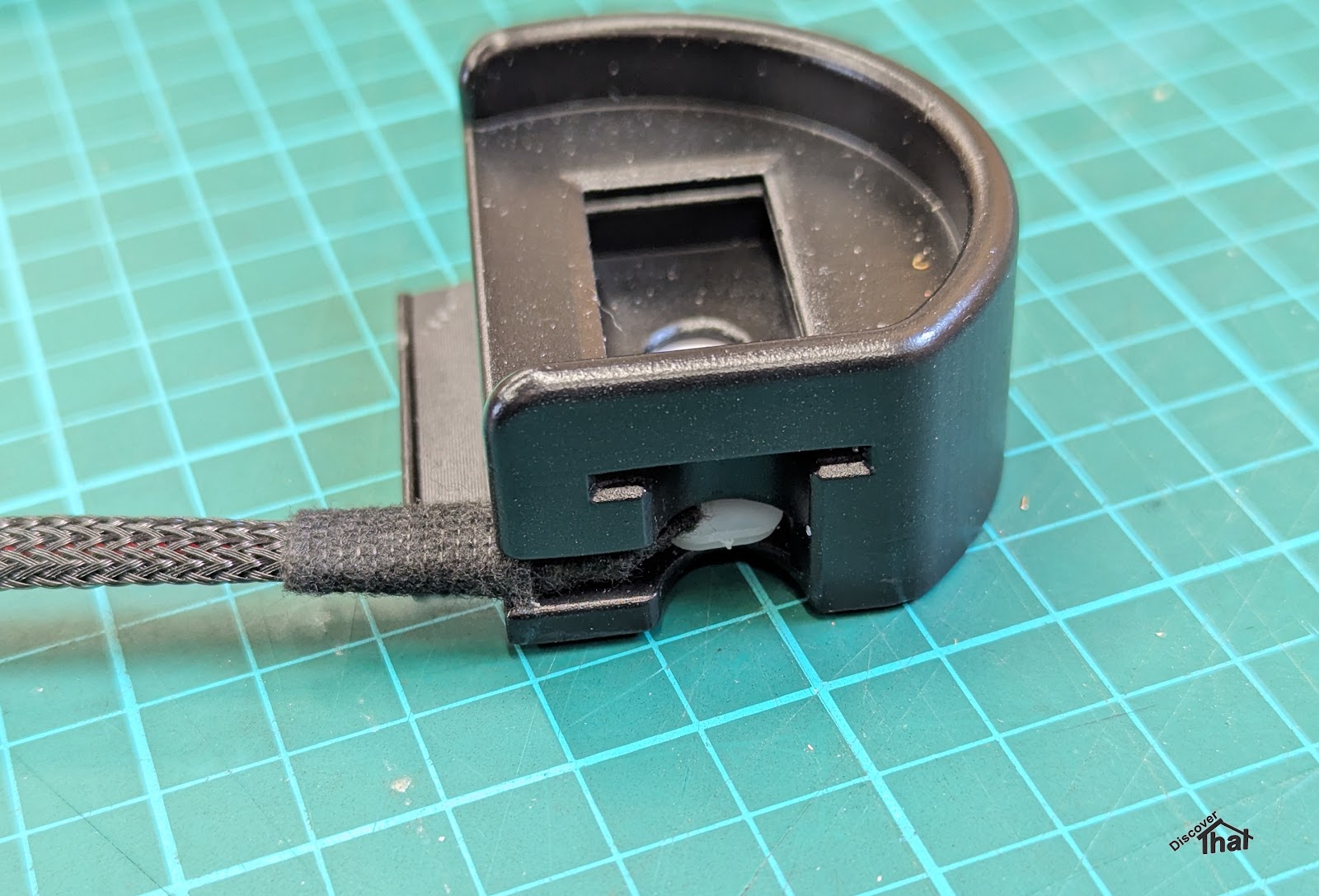

A magnetic holder using a 16mm diameter x 5mm deep magnet, held on using a countersunk M3 nut and bolt.

A version that fits a cork, so wire can be pushed into it and the one I expect to use the most, a flat top for sticking things to it.


All three are designed to print unsupported on either a resin or a filament printer.

==

Download:

Painting Handles STL and STEP files (zip)


==




Monday, 24 March 2025

In-car reminder binnacle

This evolved out of a comment made about remembering to help out a neighbour on the way home every Monday. I could not resist coming up with a solution.



It was quickly thrown together, over a couple of weekends, using an off the shelf 12V timer that can be set for times and days of the week.



I designed and 3D printed a small binnacle that fits neatly in the corner of a Land Rover Defender TDCi (Puma) dash. It's vaguely in the same style as the rest of the display. I bought some pre-wired 12V LED's and had my choice of colour for the light.


The timer fits on the shelf next to the steering column. As always the longest task was taking the dash apart to find an ignition switched feed and an earth.



I used a Cricut vinyl cutter to make the lettering. It is printed in reverse to apply to some satin translucent plastic sheet. With the light off, the legend is barely visible. The lettering could easily be swapped out.


==


Sunday, 23 March 2025

Ready for the swallows

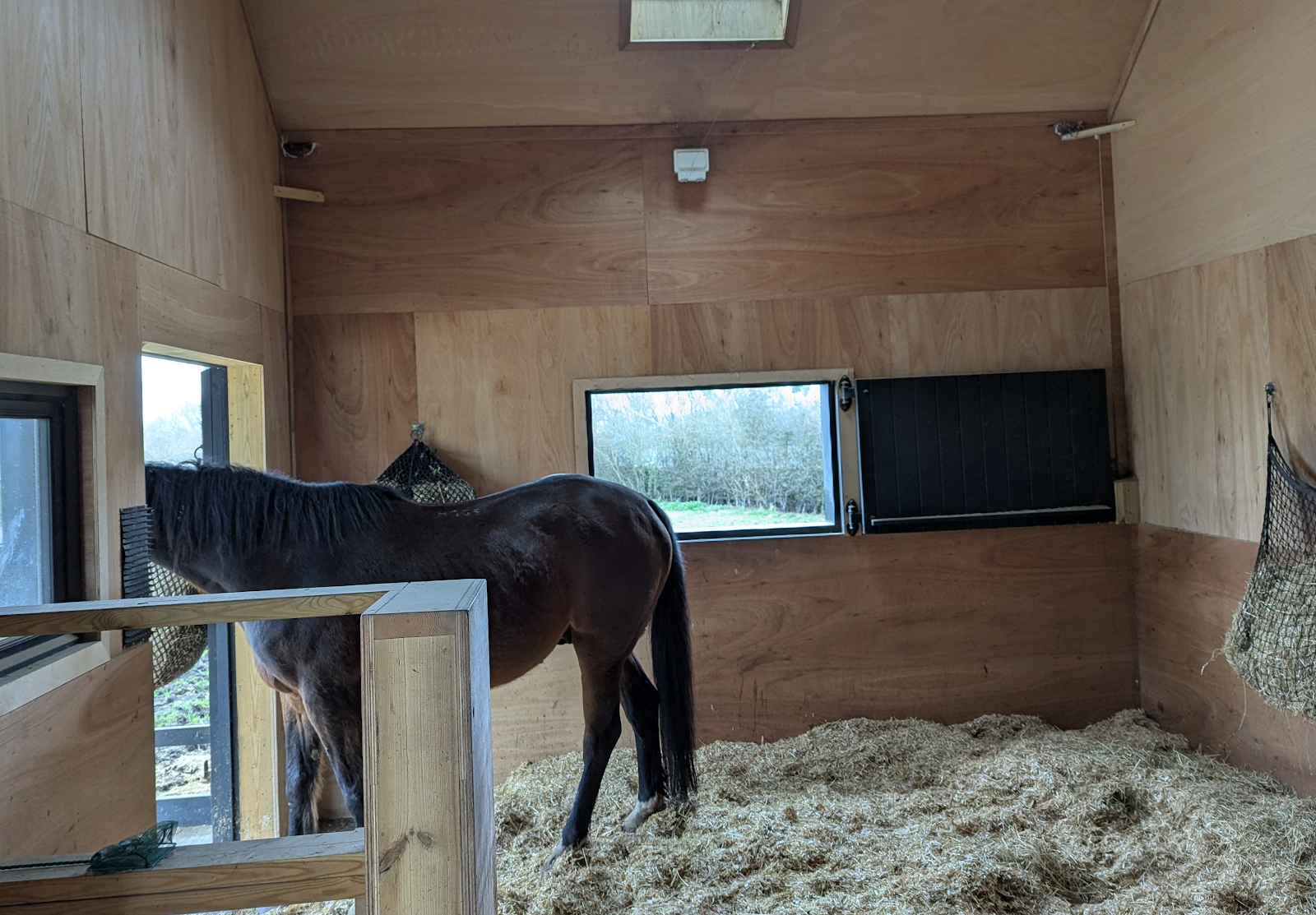

The swallows took advantage of the relocated stables last year while the new shed was being built.  I am expecting them to be eager to establish new homes this summer.



During the build, I'd taken advantage of the scaffold tower to put up a couple of artificial nests. Today I put up two salvaged nests.



We've done this before when we demolished previous dilapidated outbuildings. I've tried to pick spots similar to locations that the swallows choose for themselves. They appear to like them in the shadows. I've also added some perches. I have noticed that the adult swallows like to line up outside their nests when they are building them and when feeding their young. The young fledglings like to return to perch near to their nest.





The nests are light enough that they are easily held up with a liberal application of builders adhesive. From past experience, we know that the swallows will repurpose and repair the salvaged nests.

We are looking forward to them arriving.

==

Tuesday, 18 March 2025

Solution to the OneDrive Personal Vault login

I have used OneDrive online, for many years and find it very useful.

There are features I could moan about, but nothing too significant, with the online version.

However, like many others, using OneDrive to synchronise my personal folders to a computer has been mildly traumatic.

I work in IT so I experience this sort of thing all the time, and it never ceases to amaze me the choices that some developers take.

That moan over, the OneDrive setup did two things that caused me problems, both I managed to solve in very similar ways.

Too Many Folder

It would not have been my choice of default, but upon enabling OneDrive to backup to the cloud it automatically started to synchronise the 10's of thousands of files I had stored in organised folder in OneDrive online! All I wanted was the standard Documents folder with my current working files in it.

My laptop ground to a near halt, making it very difficult to access the options to disable sync., on the folders I did not want.




By pausing the sync, I eventually managed to reduce it to the standard minimal set. Although I have a feeling it might need to sync everything before it let me change it. I know it took a while.


Repeatedly Authenticating the Personal Vault

This is the most annoying issue. It breaks OneDrive synchronisation. It shows as an error inside the app, and appears to stop. The error is because it cannot open the Personal Vault folder because it is locked.

To get past the error, the Personal Vault needs to be manually unlocked, every session. That is even if the vault is empty and has never been used!

According to reports on the internet, Microsoft have removed the option to disable the Personal Vault, as a solution to people losing files.


Solution

I am not sure if the following need to be done in the correct order to avoid accidentally deleting the online copies of the files and folders. I was able to stop synchronising the folder that I did not need on my local machine. The actions I did were:

  • Stop folders from synchronising (not applicable to the Personal Vault.)
  • Remove the local copy.




The option to stop a folder synchronising is in the Account option of the OneDrive app on the computer.. After I had stopped them sync'ing, the day after, the folders disappeared from the OneDrive tree in Windows Explorer.

What was a surprise to me, was that by deleting the local copy of the "Personal Vault" folder, from the OneDrive -Personal tree section in Windows Explorer, The OneDrive app no longer attempted to synchronise it.

The Personal Vault folder has re-instated itself, but, so far, after three days, I have not had the error about unlocking the personal vault.

Conclusion

In typical IT fashion, these instructions may only remain valid for a short period of time, it's March 2025 as I write this, and in the same way, they may not work for everyone. They worked for me and my laptop is usable again.


==




Sunday, 2 March 2025

This seasons nest boxes

Last year, with the building works, was a bit of a change for the bird population, but they appeared to adapt well. This year we've been able to add a few more places for them to nest.




Within minutes of putting them up we saw interest from a few blue tits.

==
